The resistors are used in alternating-current
and direct-current circuits in continuous and pulsed conditons.

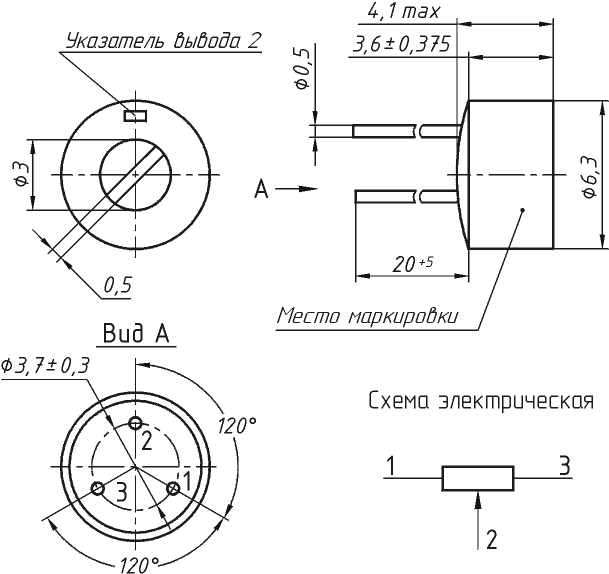

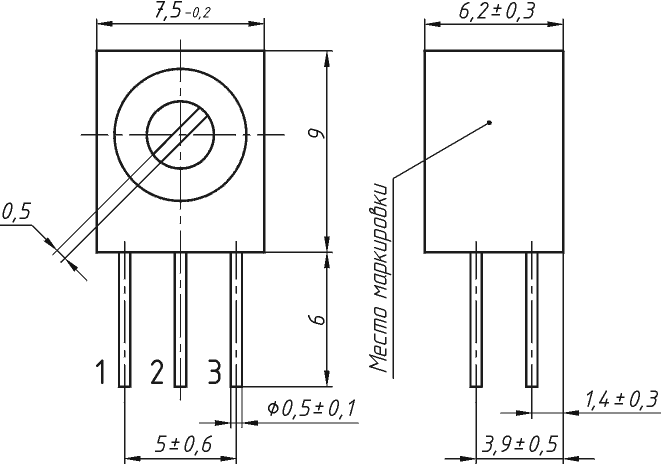

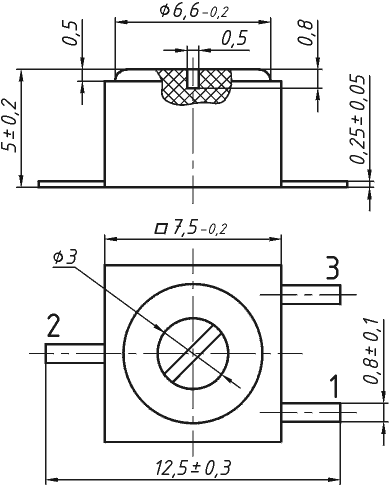

SP3-19g is intended for surface wiring.
Specifications
| -
Single-turn resistor with a circular operation |
| -
Power (at a temperature of 70°С) |
0,5
wt |
| -
Rated resistance range |
47...1
000 000 Ohm |
| -
Tolerance on rated resistance |
+/-10%;
+/-20% |
| -
Limiting element voltage |
150
V |
| -
Quantity of cycles of operation |
500 |
| -
Rotational life |
20
000 hours |
| -
Resistance behaviour |
Linear |
| -
Tolerance on linearity, no more than |
20% |
| -
TCR (for resistance up to 330 Ohm) |
+/-0,0005
1/°С |
| -
TCR (for resistance over 330 Ohm ) |
+/-0,00025
1/°С |
Operating
conditions
Mechanical
influence :
| -
Sinusoidal vibration: |
- frequency range
|
1-5000
Hz |
- amplitude of
acceleration
|
390
m/sq sec |
| -
Mechanical impacts of single operation (acceleration) |
10
000 m/sq sec |
| -
Mechanical impacts of multiple operation(acceleration) |
1500
m/sq sec |
| -
Linear acceleration |
5000
m/sq sec |
Climatic
influence:
| -
Temperature range |
from
-60 to +125°С |
| -
Relative air humidity (at a temperature of +35°С) |
98% |
| -
Air pressure |
0,13-294
K Pа |
The example of scematic designation
when making out an order:
Resistor SP3-19 - 10 K Ohm +/-10% ОЖО.468.372
ТУ
|
|
| |
|
