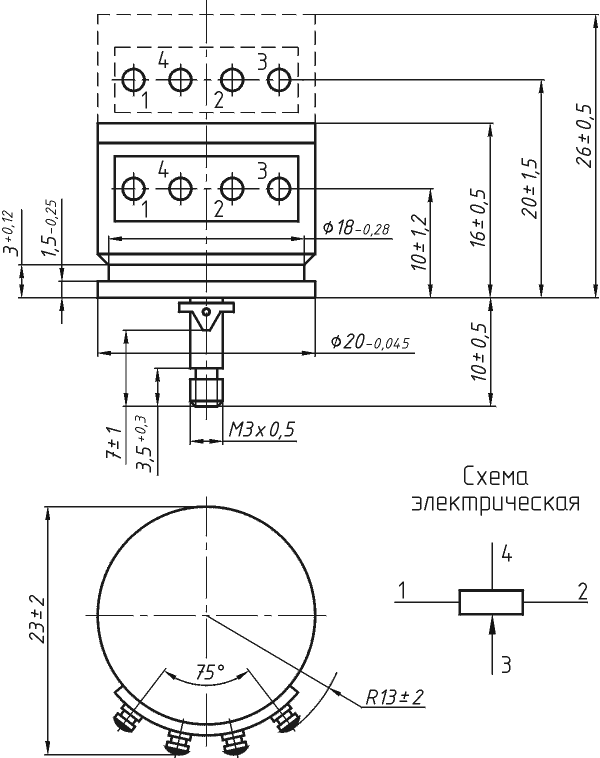

SP5-21A
|
 |
|
|
|
|
|
| Variable
wirewound panel control resistor
The resistors are used in alternating-current
and direct current circuits at a frequency up to 400
Hz.
Specifications
| -
All-climatic operating |
| -
One- and two-sectional , with circular operation |
| -
Power (at a temperature of 100°С) |
0,5
wt |
| -
Rated resistance range |
100...15
000 Оhm |
| -Tolerance
on rated resistance |
+/-5% |
| -
Quantity of axial rotation |
100
000 |
| -
Resistance behaviour |
Linear |
-
Tolerance on linearity:
up to 3,3 K
Ohm
over 3,3 K
Ohm |
+/-1%
+/-0,3%;+/-0,5%;+/-0,75% |
| -
Mass SP5-21A-1
SP5-21A-2 |
12 grm
18 grm |
Operating conditions
Mechanical
influence :
| -
Sinusoidal vibration: |
- frequency range
|
1-3000
Hz |
- amplitude of
acceleration
|
150
m/sq sec |
| -Mechanical
impacts of single operation (acceleration) |
1
500 m/sq sec |
| -
Mechanical impacts of multiple operation (acceleration) |
350
m/sq sec |
| -
Linear accaleration |
1
000 m/sq sec |
Climatic
influence:
| -
Temperature range |
from
-60 to+125°С |
| -
Relative air humidity (at a temperature of
+35°С) |
98% |
| -
Air pressure |
0,13
- 304 kPа |
|
|
|
|
