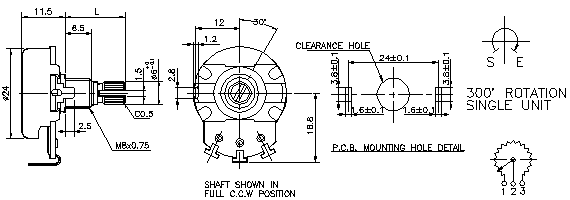

旋转式电位器R24A-10 旋转式电位器R24A-10尺寸图

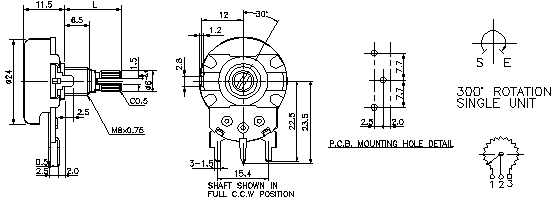

旋转式电位器R24A-22 旋转式电位器R24A-22尺寸图

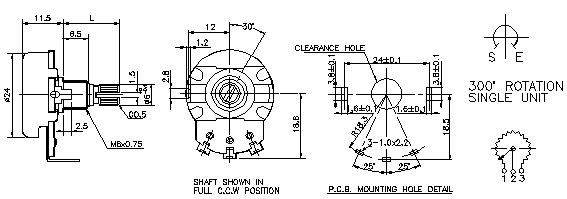

旋转式电位器R24A-30 旋转式电位器R24A-30尺寸图

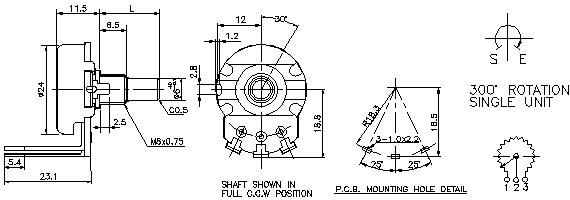

旋转式电位器R24A-40 旋转式电位器R24A-40尺寸图
  SPECIFICATIONS
  MECHANICAL   ELECTRICAL
  TOTAL ROTATION ANGLE
ROTATION TORQUE
SHAFT STOP STRENGTH

300°±5°
20-200gf-cm
more than 6 kgf.cm/min

 RATED WATTAGE

RATED VOLTAGE
INSULATION RESISTANCE
DIELECTRIC

linear taper(B)Other taper
0.5W     0.25W
500V    250V
more than 100MΩ at DC500V
AC500V,1minute
